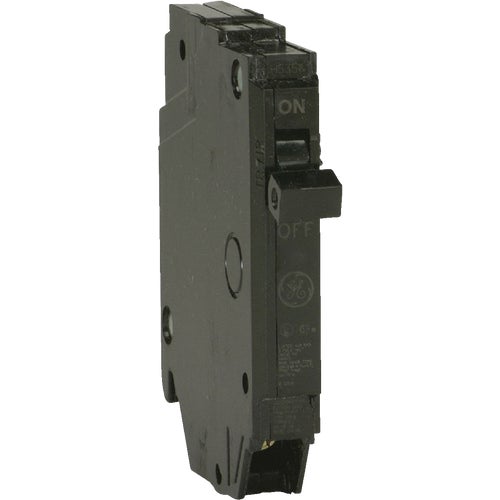

THQP215 GE THQP Circuit Breaker
Q-Line circuit breaker. Features a dedicated calibration screw which is cemented to prevent shifting. The attached screw creates a stable calibration for optimum performance. Tin-plated copper stab creates a reliable, permanent, and corrosion resistant connection. Case is made of heat resistant thermoset for stability and structural integrity. Box type terminals, trips to center position. Meets NEMA (National Electrical Manufacturer's Association) standards. ANSI (American National Standards Institute) and CSA (Canadian Standards Association) certified.
No. THQP115: Amperage: 15, Number of Poles: 1, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 1-Space, Width (In.): 0.5, Mount Type: Plug-In, Wire Size: #14-8 AWG, Certification: ANSI/CSA/UL Listed, Pkg Qty: 1
No. THQP120: Amperage: 20, Number of Poles: 1, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 1-Space, Width (In.): 0.5, Mount Type: Plug-In, Wire Size: #14-8 AWG, Certification: ANSI/CSA/UL Listed, Pkg Qty: 1
No. THQP130: Amperage: 30, Number of Poles: 1, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 1-Space, Width (In.): 0.5, Mount Type: Plug-In, Wire Size: #8-4 AWG, Certification: ANSI/CSA/UL Listed, Pkg Qty: 1
No. THQP140: Amperage: 40, Number of Poles: 1, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 1-Space, Width (In.): 0.5, Mount Type: Plug-In, Wire Size: #8-4 AWG, Certification: ANSI/CSA/UL Listed, Pkg Qty: 1
No. THQP215: Amperage: 15, Number of Poles: 2, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 1-Space, Width (In.): 0.5, Mount Type: Plug-In, Wire Size: #14-8 AWG, Certification: ANSI/CSA/UL Listed, Pkg Qty: 1, Package Type: Box
No. THQP220: Amperage: 20, Number of Poles: 2, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 1-Space, Width (In.): 0.5, Mount Type: Plug-In, Wire Size: #14-8 AWG, Certification: ANSI/CSA/UL Listed, Pkg Qty: 1
No. THQP230: Amperage: 30, Number of Poles: 2, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 1-Space, Width (In.): 0.5, Mount Type: Plug-In, Wire Size: #8-4 AWG, Certification: ANSI/CSA/UL Listed, Pkg Qty: 1
No. THQP240: Amperage: 40, Number of Poles: 2, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 1-Space, Width (In.): 0.5, Mount Type: Plug-In, Wire Size: #8-4 AWG, Certification: ANSI/CSA/UL Listed, Pkg Qty: 1
No. THQP250: Amperage: 50, Number of Poles: 2, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 1-Space, Width (In.): 0.5, Mount Type: Plug-In, Wire Size: #8-4 AWG, Certification: ANSI/CSA/UL Listed, Pkg Qty: 1
Sold as Unit of Measure: EACH
Minimum/Multiple Order Quantity: 1
