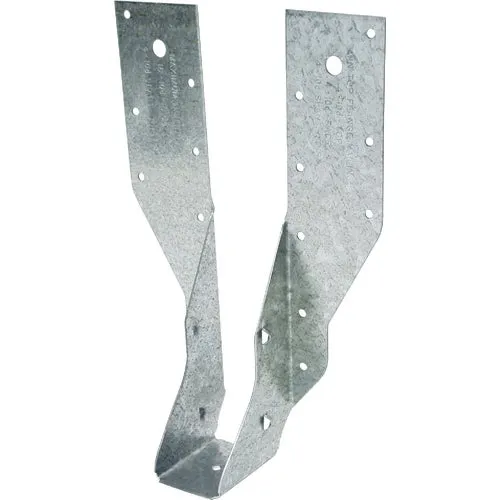

THA29 Simpson Strong-Tie THA29 Adjustable Truss Hanger
Designed for 4x2 floor trusses and 4x beams. For the THA29, nails used for joist attachment must be driven at an angle so that they penetrate through the corner of the joist and into the header. For face mount installation, install all face nails according to the table. Minimum carried member 2x4 to 4x10.
No. THA29: Size: 1-5/8" W x 9-11/16" H x 5-1/8" C, Material: Steel, Gauge: 18 ga, Install WIth: 4-10d on top; 16-10d on face; 4-10d slnt, Pkg Qty: 1
Sold as Unit of Measure: EACH
Minimum/Multiple Order Quantity: 50
