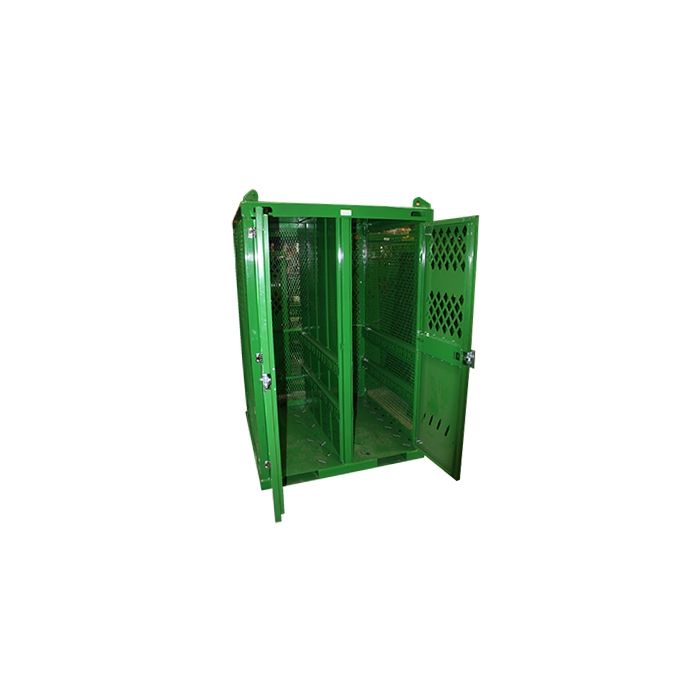

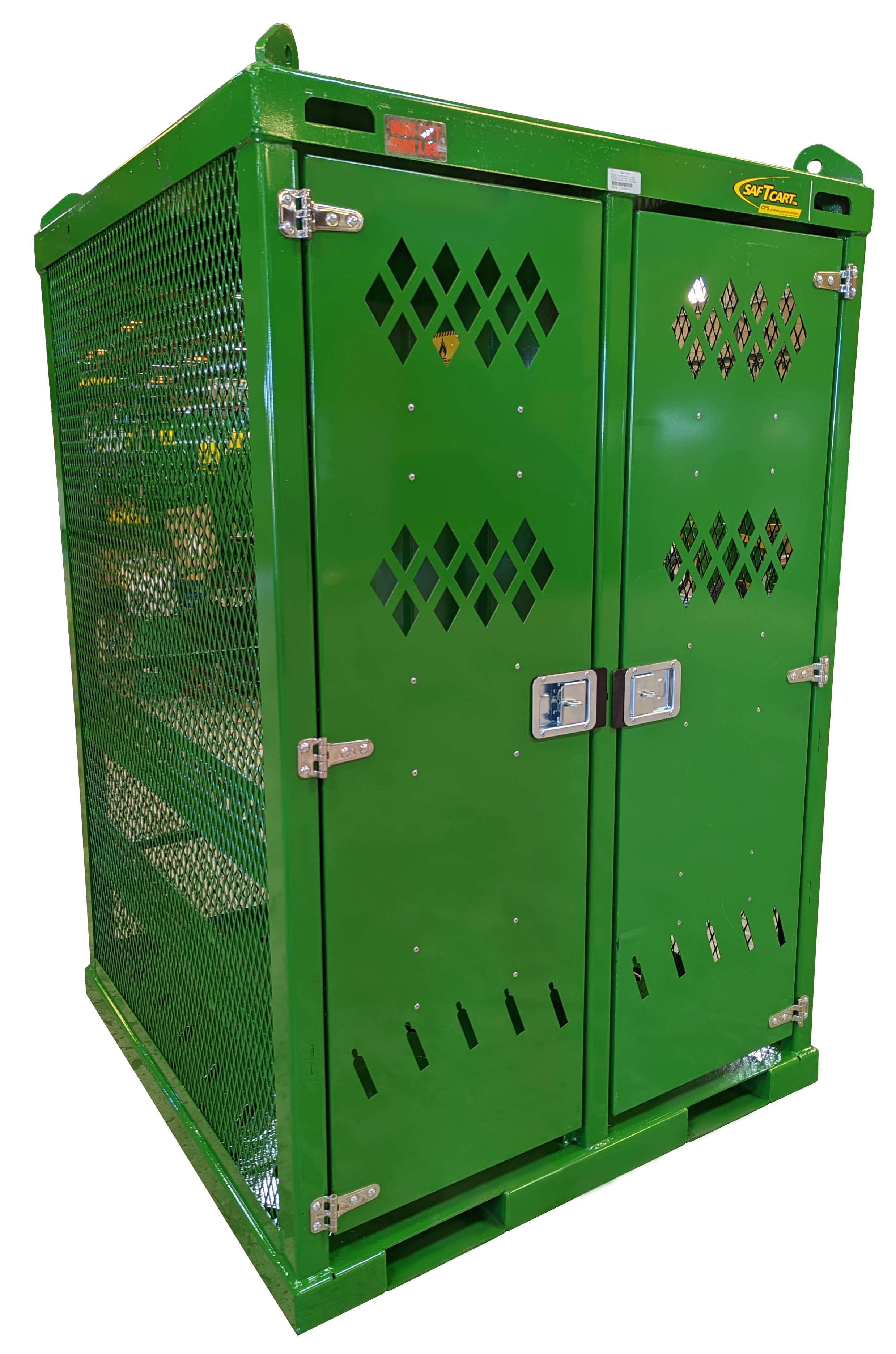

STS-20-FW-2 20 Cylinders Vertical Storage, Outdoor Gas Firewall Cylinder Cabinet

STS-20-FW-2 20 Cylinders Vertical Storage, Outdoor Gas Firewall Cylinder Cabinet

This gas cylinder cabinet holds approximately 20 gas cylinders of 9.25" diameter or any equivalent combination of cylinders depending on cylinder diameter and includes a firewall for oxygen and fuel (eg acetylene) separation. The cabinet is made with fully-welded steel and has a solid panel roof. There are 4 integrated lifting eyes that allow the cabinet to be picked up by a crane or hoist hook. It also includes a forklift base featuring fully-enclosed channels. This gas welding cabinet allows storage of fuel and oxygen cylinders in compliance with OSHA standard 1910.253 (b)(4)(iii) and NFPA 55-7.1.6.2.1 regulations with 1-hour fire barrier material. The firewall consists of two pieces of 14 gauge sheet steel with a baffle in between all welded together. The double doors have a lockable latch. Inside there is the E-track strapping system to secure the cylinders with the included ratchet strap. It has a certified payload capacity of 4,500 lbs. Includes manufacturer's vinyl ID tag that provides the load capacity and unit weight.  Overall Product Dimensions (WxDxH): 51" x 51" x 79". (cabinet height not including hoist hook is 74.375"), Usable floor space (2): 21"w x 46.5"d.

A load test certificate is available for an additional cost; contact customer service before ordering for further information.

Internal (usable floor space): 46"w x 46"d

• OSHA compliant
• 4 lifting eyes allow movement by hoist hook
• Firewall barrier (1-hour rated) separates the two compartments
• Forkliftable base (7.8125"w by 2.625"h pocket openings)
• Fully-welded steel framing
• Expanded metal siding
• Tamper-resistant stainless steel hinges
• Lockable door (lock not included)
• E-track strapping system inside
• 2 ratchet straps included (4ft)
• Made in the USA

• Product weight: 950 lbs

Made to Order: Estimated production is 3-4 weeks. Not Cancelable or Returnable.
