Item Number: STS12FW2
Manufacturer Part ID: STS12FW2

Manufacturer: STC


There are no reviews yet. |
Retail: $4,095.00
Price: $3,275.00
You Save: $820.00 (20.0%)

    Purchase with Reward Points:187143

    Quantity:

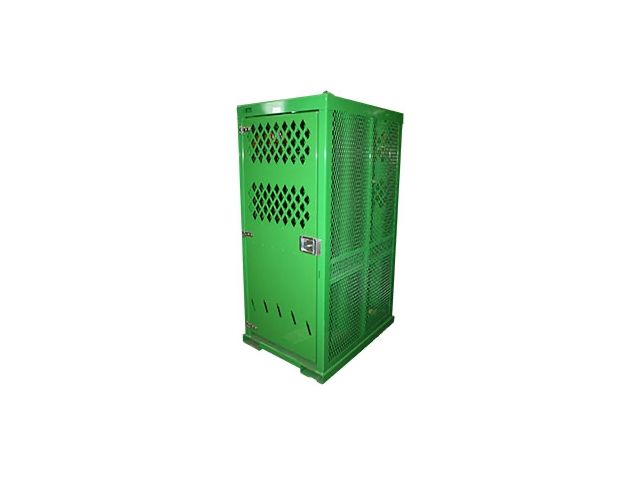

    STS-12-FW-2 12 Cylinders Vertical Storage, Outdoor Gas Cylinder Firewall Cabinet

    This gas cylinder cabinet holds approximately 12 gas cylinders of 9.25" diameter or any equivalent combination of cylinders depending on cylinder diameter and includes a firewall for oxygen and fuel (eg acetylene) separation. The cabinet is made with fully welded steel, expanded metal siding and a solid panel roof. An integrated hoist hook allows the cabinet to be picked up by a crane or hoist. It also includes a forklift base using fully enclosed channels. The two doors have a lockable latch. Inside there is the E-track strapping system to secure the cylinders with the included ratchet strap. It has a certified payload capacity of 2,950 lbs. It consists of the manufacturer's vinyl ID tag that provides the load capacity and unit weight. Overall Product Dimensions (WxDxH): 33" x 43" x 79.5" (door opening is 25", cabinet height not including hoist hook is 74.375").

    A load test certificate is available for an additional cost; contact customer service before ordering for further information.

    Cabinet capacity: Approximately 12 cylinders of 9.25" diameter

    Load capacity: 2,950 lbs

    Cabinet dimensions: External:  33"w  x  43"d x 79.5"h

    Internal (usable floor space): 28.75"w x 38.75"d

    Gas Storage Cabinet Features:

    • OSHA compliant
    • Hoistable with lifting hook
    • Firewall barrier separates the two compartments
    • Forkliftable base (7.8125"w by 2.625"h pocket openings)
    • Fully welded steel framing
    • Expanded metal siding
    • Tamper-resistant stainless steel hinges
    • 2 Lockable doors (lock not included)
    • E-track strapping system inside
    • Ratchet strap included
    • Made in the USA
    • Product weight: 663 lbs

    Made to Order: Estimated production is 3-4 weeks. Not Cancelable or Returnable.
