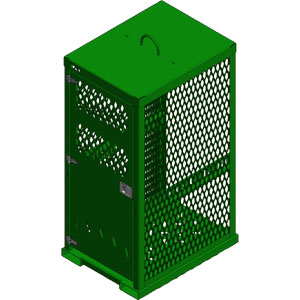

STS12 12 Cylinders Vertical Storage, Outdoor Gas Cylinder Cabinet
This
gas cylinder cabinet holds approximately 12 gas cylinders of 9.25"
diameter or any equivalent combination of cylinders depending on
cylinder diameter. The cabinet has fully welded steel, expanded
metal sides, and a solid panel roof. An integrated lifting eye allows
the cabinet to be picked up by a crane or hoist hook. And it also
includes a forklift base using fully-enclosed channels. The door has a
lockable paddle slam latch (lock not included). Inside is the
E-track strapping system to secure the cylinders with the included
ratchet strap. It has a certified payload capacity of 2,950 lbs. It consists of the manufacturer's vinyl ID tag that provides the load capacity and
unit weight. Overall Product
Dimensions (WxDxH): 33" x 43" x 79.5" (door opening is 25", cabinet
height not including hoist hook is 74.375"), Usable floor space: 28.75"w
x 38.75"d.
A load test certificate is available for an additional cost; contact customer service before ordering for further information.
Cabinet capacity: Approximately 12 cylinders of 9.25" diameter
Load capacity: 2,950 lbs
Cabinet dimensions: External: 33"w x 43"d x 79.5"h
Internal (usable floor space): 28.75"w x 38.75"d
Gas Cylinder Storage Cabinet Features:
- OSHA compliant
- Hoistable with lifting hook
- Forkliftable base (7.8125"w by 2.625"h pocket openings)
- Fully-welded steel framing
- Expanded metal sides
- Tamper-resistant stainless steel hinges
- Paddle slam latch lockable door (lock not included)
- E-track strapping system inside
- Ratchet strap included (4ft)
- Made in the USA
Made to Order: Estimated production is 3-4 weeks. Not Cancelable or Returnable.
