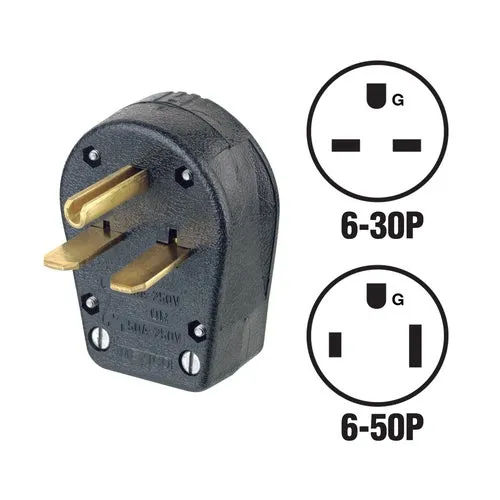

R55-00931-00E Leviton Dual Power Plug
30A and 50A right angle, dead front plug. Includes 30A adjustable blade and flat 50A blade. Built-in rejection feature prevents closure if blade is incorrectly positioned. Cord clamp for use with
No. 14, 12, 10, 8, and 6 AWG round cord and
No. 10/3 SRDT, 8/2-10/1 SRDT, and 6/2-8/1 flat wire. Cord diameter 0.630 In. -1.050 In. Shell and bottom hinged for easy assembly. Zinc-plated steel screws. 30A/250V grounding, NEMA 6-30P. 50A/250V grounding, NEMA 6-50P. UL (Underwriter's Laboratories) and CSA (Canadian Standards Association) listed.
No. R55-00931-00E: Amperage: 30/50, Voltage: 250, Number Of Wires: 3, Number Of Poles: 2, NEMA Configuration: 6-30P, 5-50P, Blade Type: Straight, Blade Material: Brass, Body Material: Thermoplastic, Cord Range: 0.630 In. to 1.050 In., Gauge: 14 to 16 AWG, Color: Black, Pkg Qty: 1, Package Type: Bag
Sold as Unit of Measure: EACH
Minimum/Multiple Order Quantity: 1
