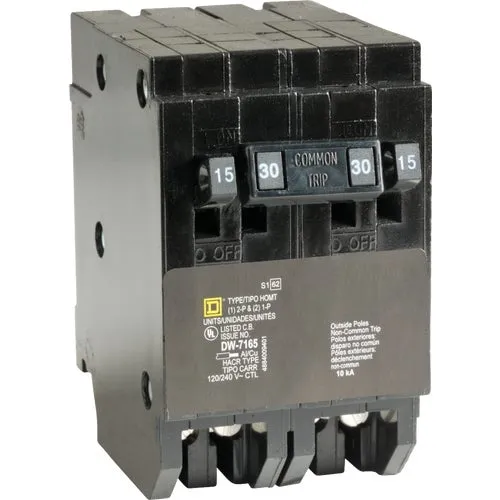

HOMT2020220CP Square D Homeline Quad Tandem Circuit Breaker
Homeline quad circuit breaker. 2 single-pole outer breakers and 1 double-pole inner breaker requiring 2 spaces. Used for overload and short-circuit protection of electrical systems. Compatible with Homeline load centers and CSED devices. Rated for 120 volt/240 volt and 10,000 AIR. Designed exclusively for the residential market. ANSI (American National Standards Institute) certified and UL (Underwriter's Laboratories) listed.
No. HOMT1515230CP: Amperage: 15/15/30, Number of Poles: 2, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 2-Space, Width (In.): 1, Mount Type: Plug-In, Wire Size: #14-8 AWG, Certification: ANSI/UL Listed, Pkg Qty: 1
No. HOMT2020220CP: Amperage: 20/20/20, Number of Poles: 2, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 2-Space, Width (In.): 1, Mount Type: Plug-In, Wire Size: #14-8 AWG, Certification: ANSI/UL Listed, Pkg Qty: 1
No. HOMT2020230CP: Amperage: 20/20A30, Number of Poles: 2, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 2-Space, Width (In.): 1, Mount Type: Plug-In, Wire Size: #14-8 AWG, Certification: ANSI/UL Listed, Pkg Qty: 1
Sold as Unit of Measure: EACH
Minimum/Multiple Order Quantity: 1
