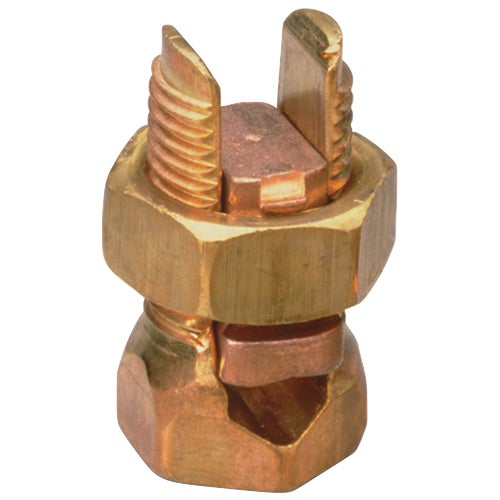

GSBC-6 Gardner Bender Copper Split Bolt Connector
Copper split bolt made from high-strength copper alloy allowing maximum conductivity and high breakage resistance. Precision tooled threads allow maximum torque to be applied. UL (Underwriter's Laboratories) listed, CSA (Canadian Standards Association) certified.
No. GSBC-8: Gauge: #16 to #10 AWG Stranded, #16 to #8 Solid, Material: Copper Alloy, Range for Equal Main and Tap: 8 to 16 AWG, Min Tap with one Max Main: 10-10, Certification: CSA/UL Listed, Pkg Qty: 2, Package Type: Clamshell
No. GSBC-6: Gauge: #10 AWG Stranded, #10 to #8 AWG Solid, Material: Copper Alloy, Range for Equal Main and Tap: 6 to 16 AWG, Min Tap with one Max Main: 6-6, Certification: CSA/UL Listed, Pkg Qty: 2, Package Type: Clamshell
No. GSBC-4: Gauge: #8 to #4 AWG Solid, Material: Copper Alloy, Range for Equal Main and Tap: 6 to 14 AWG, Min Tap with one Max Main: 8-8, Certification: CSA/UL Listed, Pkg Qty: 2, Package Type: Clamshell
No. GSBC-2: Gauge: #6 to #2 AWG Solid, Material: Copper Alloy, Range for Equal Main and Tap: 2 to 14 AWG, Min Tap with one Max Main: 6-6, Certification: CSA/UL Listed, Pkg Qty: 2, Package Type: Clamshell
No. GSBC-1/0: Gauge: #4 to #0 AWG Solid, Material: Copper Alloy, Range for Equal Main and Tap: 1/0 to 14 AWG, Min Tap with one Max Main: 4-4, Certification: CSA/UL Listed, Pkg Qty: 1, Package Type: Clamshell
No. GSBC-2/0: Gauge: #2 to #00 AWG Solid, Material: Copper Alloy, Range for Equal Main and Tap: 2/0 to 14 AWG, Min Tap with one Max Main: 2-2, Certification: CSA/UL Listed, Pkg Qty: 1, Package Type: Clamshell
No. GSBC-3/0: Gauge: #2 to #000 AWG Solid, Material: Copper Alloy, Range for Equal Main and Tap: 3/0 to 8 AWG, Min Tap with one Max Main: 1-1, Certification: CSA/UL Listed, Pkg Qty: 1, Package Type: Clamshell
Sold as Unit of Measure: EACH
Minimum/Multiple Order Quantity: 1
