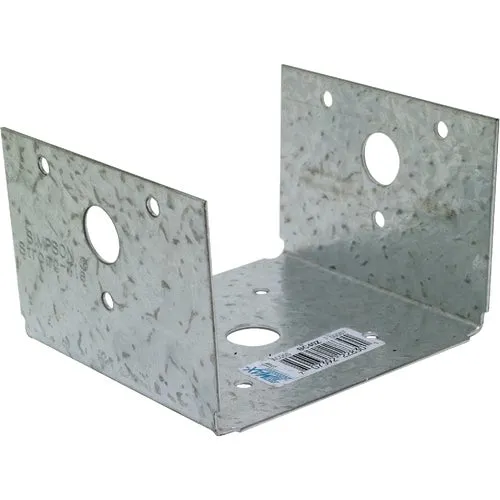

BC40Z Simpson Strong-Tie Half Base
The BC series offers dual-purpose post cap/base for light cap or base connections. Do not install bolts into pilot holes. Install with 16d common nails or 16d x 2-1/2" joist hanger nails. Post bases do not provide adequate resistance to prevent members from rotating about the base and are not recommended for non top-supported installations (such as fences or unbraced carports). 18-gauge galvanized steel. Some sizes available with ZMAX coating.
No. BC40Z: Size: 4 In. x 4 In., Gauge: 18 ga, Finish: ZMAX, Material: Steel, Dimensions: 3-9/16" W x 3-1/4" L x 2-1/4" H, Type: Half Base, Install With: 6-16d fasteners on post flange, Pkg Qty: 1
No. BC60Z: Size: 6 In. x 6 In., Gauge: 18 ga, Finish: ZMAX, Material: Steel, Dimensions: 5-1/2" W x 5-1/2" L x 3" H, Type: Half Base, Install With: 6-16d fastners on post flange, Pkg Qty: 1
Sold as Unit of Measure: EACH
Minimum/Multiple Order Quantity: 1
