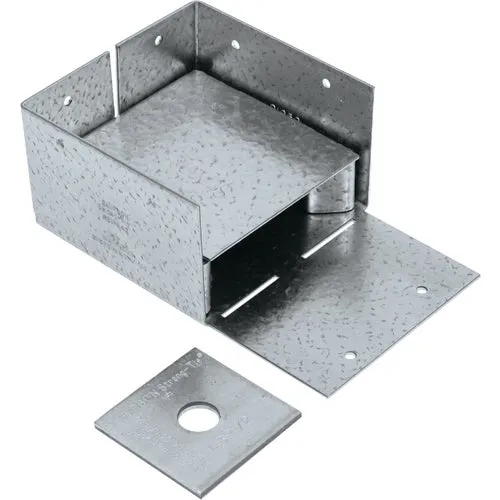

ABW66Z Simpson Strong-Tie ABW Post Base
An adjustable retrofit post base with a 1" standoff and increased capacity to resist uplift loads. Features a slot in the ABW that allows flexible positioning around the anchor bolt making precise post placement easier. The 1" standoff helps prevent rot at the end of the post and meets code requirements for structural post that are installed in basements or exposed to weather or water splash. Place the standoff base and then the post in the ABW and fasten on 3 vertical sides. Installs with nails or Strong-Drive SD Connector screws. Bend the fourth side of the ABW and fasten. Finish ZMAX coating.
No. ABW44Z: Size: 4 In. x 4 In., Gauge: 16 ga, Finish: Z-Max, Material: Steel, Dimensions: 3-9/16 In. W x 3-9/16 In. L x 2-1/4 In H, Type: Standoff, Install With: 1/2 In. Dia Anchor or 8-10d Nails, Uplift: 1005 Lb., Download: 7180 Lb., Pkg Qty: 1, Package Type: Bag
No. ABW46Z: Size: 4 In. x 6 In., Gauge: 16 ga, Finish: Z-Max, Material: Steel, Dimensions: 3-9/16 In. W x 5-9/16 In. L x 3 In. H, Type: Standoff, Install With: 1/2 In. Dia Anchor or 10-10d Nails, Uplift: 845 Lb., Download: 4590 Lb., Pkg Qty: 1, Package Type: Bag
No. ABW66Z: Size: 6 In. x 6 In., Gauge: 12 ga, Finish: Z-Max, Material: Steel, Dimensions: 5-1/2 In. W x 5-9/16 In. L x 3 In. H, Type: Standoff, Install With: 1/2 In. Dia Anchor or 12-10d Nails, Uplift: 1190 Lb., Download: 12,935 Lb., Pkg Qty: 1, Package Type: Bag
No. ABW66RZ: Size: 6 In. x 6 In., Gauge: 16 ga, Finish: Z-Max, Material: Steel, Dimensions: 6 In. W x 6 In. L x 2-13/16 In. H, Type: Standoff, Install With: 1/2 In. Dia Anchor or 12-10d Nails, Uplift: 1190 Lb., Download: 12,935 Lb., Pkg Qty: 1, Package Type: Bag
Sold as Unit of Measure: EACH
Minimum/Multiple Order Quantity: 1
