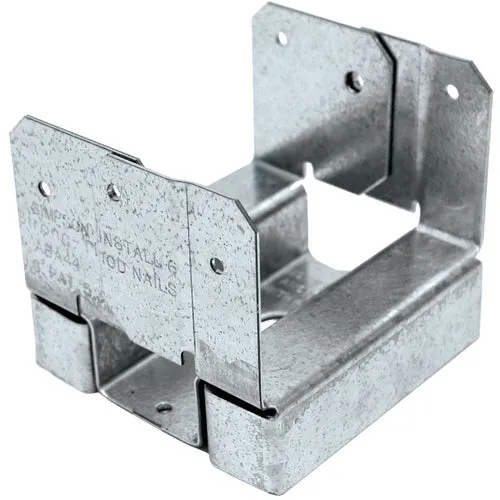

ABA66Z Simpson Strong-Tie ABA Post Base
The ABA is an adjustable post base which offers moisture protection and finished hardware appearance. These post bases feature a 1" standoff height above concrete floors, code-required when supporting permanent structures that are exposed to the weather, or water splash, or in basements. They reduce the potential for decay at post and column ends. Post bases do not provide adequate resistance to prevent members from rotating about the base and are not recommended for non top-supported installations (such as fences or unbraced carports). Place the post in the ABA and fasten using nails or Strong-Drive SD Connector screws. ZMAX galvanized coated steel.
No. ABA44Z: Size: 4 In. x 4 In., Gauge: 16 ga, Finish: Z-Max, Material: Steel, Dimensions: 3-9/16 In. W x 3-3/8 In. L x 3-1/16 In H, Type: ABA Adjustable, Install With: 6-10d fasteners & 1/2 In. Anchor Dia, Uplift: 555 Lb., Download: 6000 Lb., Pkg Qty: 1
No. ABA66Z: Size: 6 In. x 6 In., Gauge: 14 ga, Finish: Z-Max, Material: Steel, Dimensions: 5-1/2 In. W x 5-1/4 In. L x 3-1/8 In. H, Type: ABA Adjustable, Install With: 8-16d fasteners & 5/8 In. Anchor Dia, Uplift: 720 Lb., Download: 10665 Lb., Pkg Qty: 1
No. ABA46Z: Size: 4 In. x 6 In., Gauge: 14 ga, Finish: Z-Max, Material: Steel, Dimensions: 3-9/16 In. W x 5-3/16 In. L x 3-1/8 In H, Type: ABA Adjustable, Install With: 8-16d nails & 5/8 In. Anchor Dia, Uplift: 700 Lb., Download: 9435 Lb., Pkg Qty: 1
No. ABA66RZ: Size: 6 In. x 6 In., Gauge: 14 ga, Finish: Z-Max, Material: Steel, Dimensions: 6 In. W x 5-3/16 In. L x 2-7/8 In. H, Type: ABA Adjustable, Install With: 8-16 fasteners & 5/8 In. Anchor Dia, Uplift: 720 Lb., Download: 10665 Lb., Pkg Qty: 1
Sold as Unit of Measure: EACH
Minimum/Multiple Order Quantity: 1
